Radiant Plate with Electric System in Carbon Steel Made in Italy - Bigne

Electric carbon steel radiant plate Made in Italy

Electric radiant plate in carbon steel, entirely made in Italy, with a wall mounting kit included . The electrification kit is located at the bottom right. Each plate is unique because it is hand-decorated.
A development process focused on quality , innovation , and manufacturing excellence has laid the foundation for this product, which combines cutting-edge technology with the mastery of Italian craftsmanship. This piece satisfies the needs and desires of an increasingly discerning and demanding user, complementing and personalizing any space.

Dimensions:

• Length: 53cm
• Depth: 8.7cm
• Height: 123cm

Power: 600W

Available finishes:

• pure white
• frosted
• rust
• two-tone: traffic grey / pure white
• Bicolor: pure white / signal blue
• Bicolor: pure white / fire red
• stainless steel reflex
• satin stainless steel

Optional:

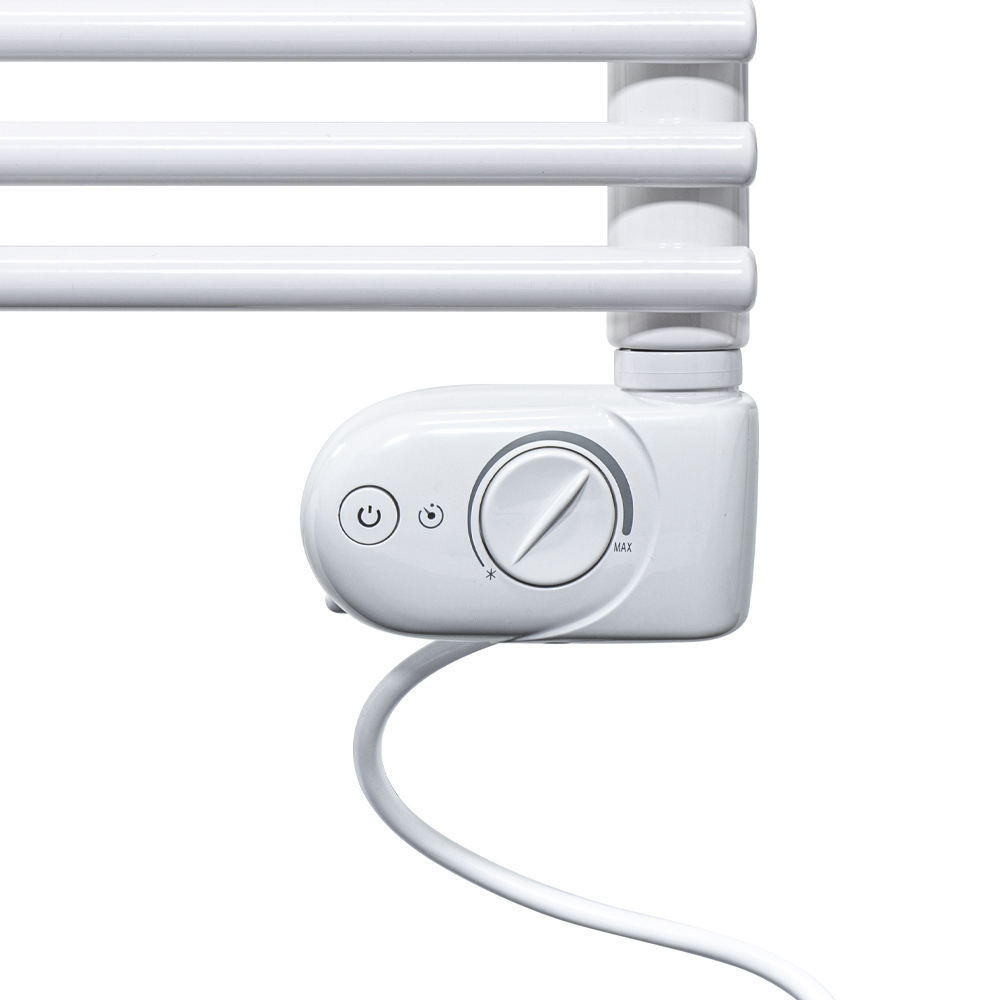

Analogue electric thermostat with white finish
class 1, protection index IP64, 230V
Dimensions: 11.3x7.3x4 cm
1200 mm power cable and Schuko plug
allows manual regulation of the temperature through the dedicated thermostat knob.

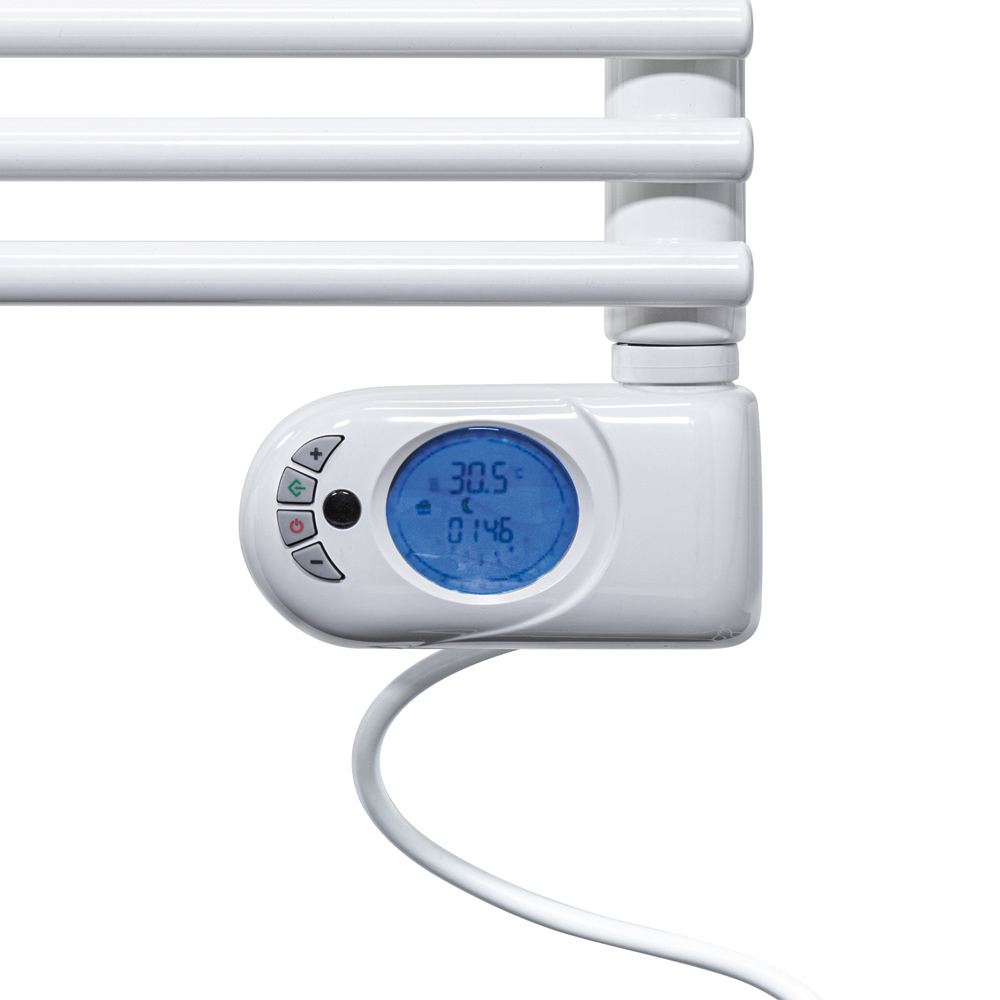

White finish LCD digital chronothermostat
class 1, protection index IP64, 230V
Dimensions: 13.1x7.6x4.2 cm
1200 mm power cable and Schuko plug
It allows for personalized daily and weekly temperature adjustment.

WARNING: Radiators equipped with an electric heating element must be positioned respecting the required safety distances from plumbing systems in accordance with the safety regulations in force in the country of use and the IP protection rating indicated on the heating element. The electric heating element must always be inserted from the bottom. Do not turn on the heating element if it is not completely immersed in the radiator fluid, as the thermal fuse will blow and the warranty will be voided. The lower elements do not heat due to the presence of the thermal limiter.

Note: Additional finishes are available. A remote control to manage the digital thermostat is available upon request.
Contact us for more information or a quote using the " Request Information " form.
