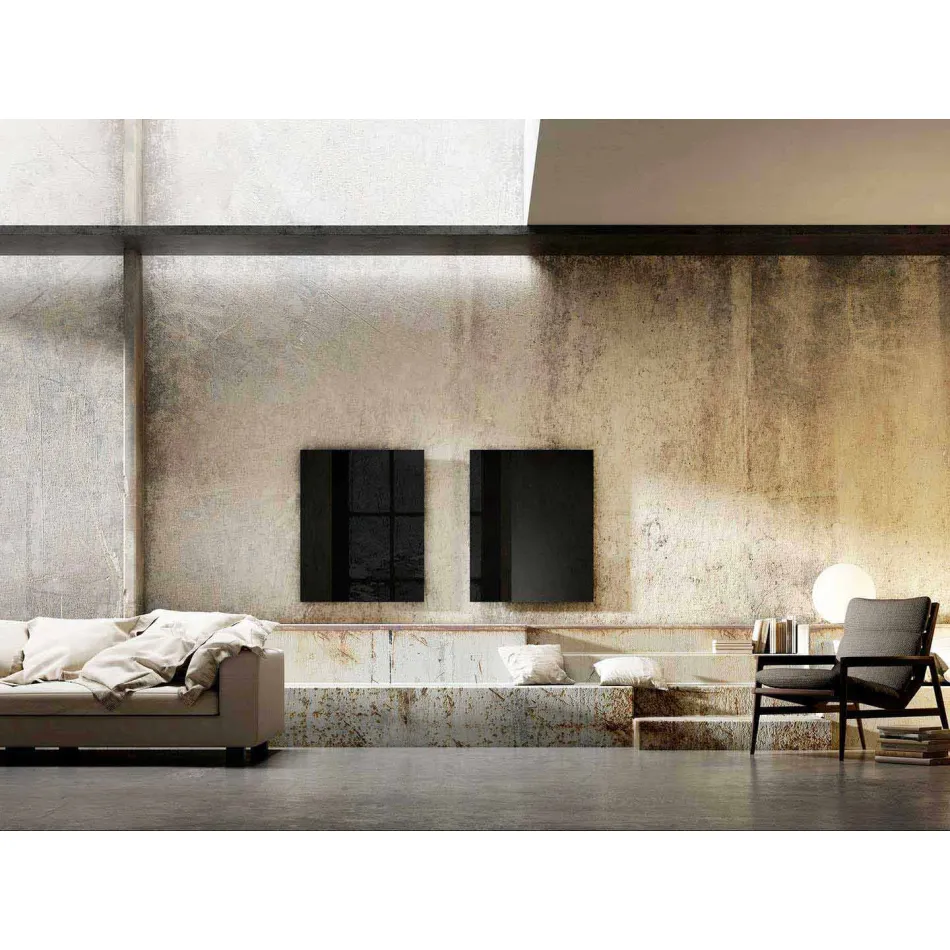

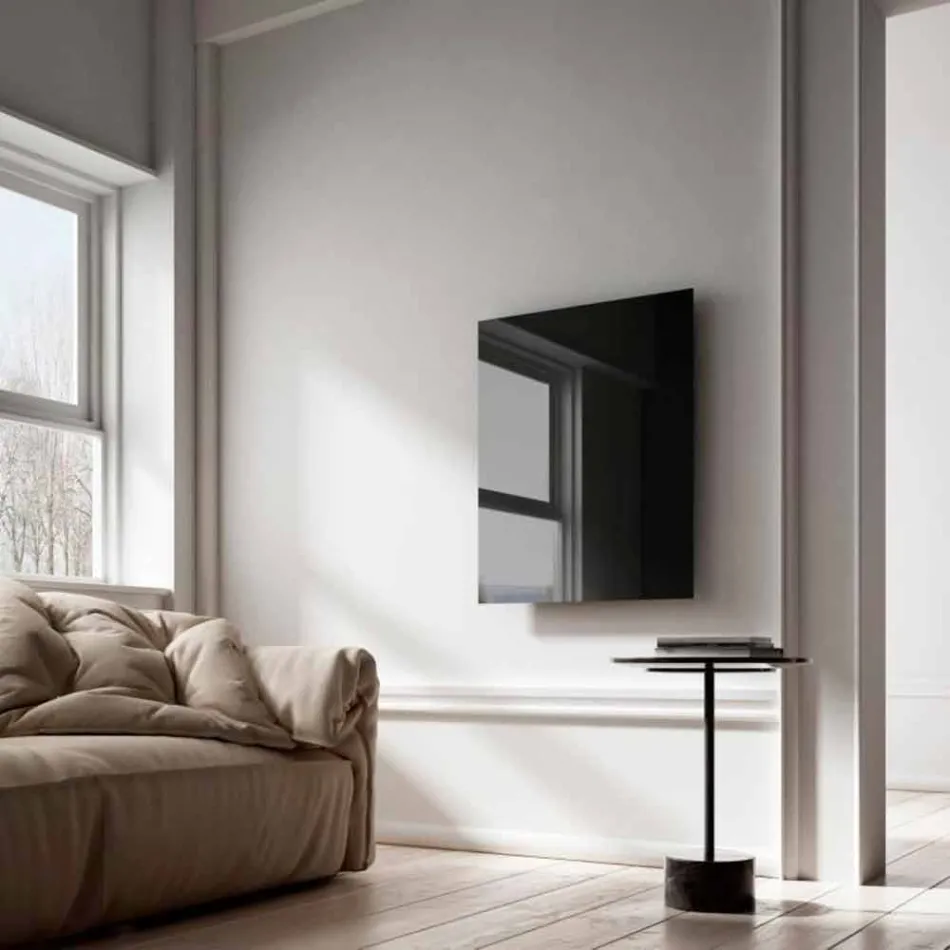

Infrared electric panel heater Clear, modern design, black glass

Infrared electric panel heater Clear, modern design, BLACKglass.
HOW TO CHOOSE YOUR MODERN DESIGN RADIATOR ACCORDING TO THE DIMENSIONS OF YOUR ROOM.


DIMENSIONS	WEIGHT	POWER	HEATING SURFACE*
450x800 mm	400 Watt	9 Kg	8 square meters
650x800 mm	600 Watt	12,7 Kg	11 square meters
850x800 mm	800 Watt	16,3 Kg	15 square meters
1050x800 mm	1000 Watt	19,9 Kg	18 square meters

* The data provided are purely theoretical and vary according to the construction and environmental characteristics of the building. For information, contact your electrician.

Clear  is a decorative radiator that is part of a collection of glass radiant panels with electrical power and infrared radiation. It guarantees a perfect combination of efficiency and elegance, with a high aesthetic impact. Star is a modern radiator made entirely of white glass. Star is composed of two sheets of glass embebbed together, one of the two features a surface that can be electrically stimulated. Applying electrical voltage, the surface deposit of the glass transforms the energy into heat that is emitted in the form of long-wave infrared rays. The wall fixing system is integrated in the rear part of the panel and is completely invisible from the front.
Clear radiator is available in four different sizes

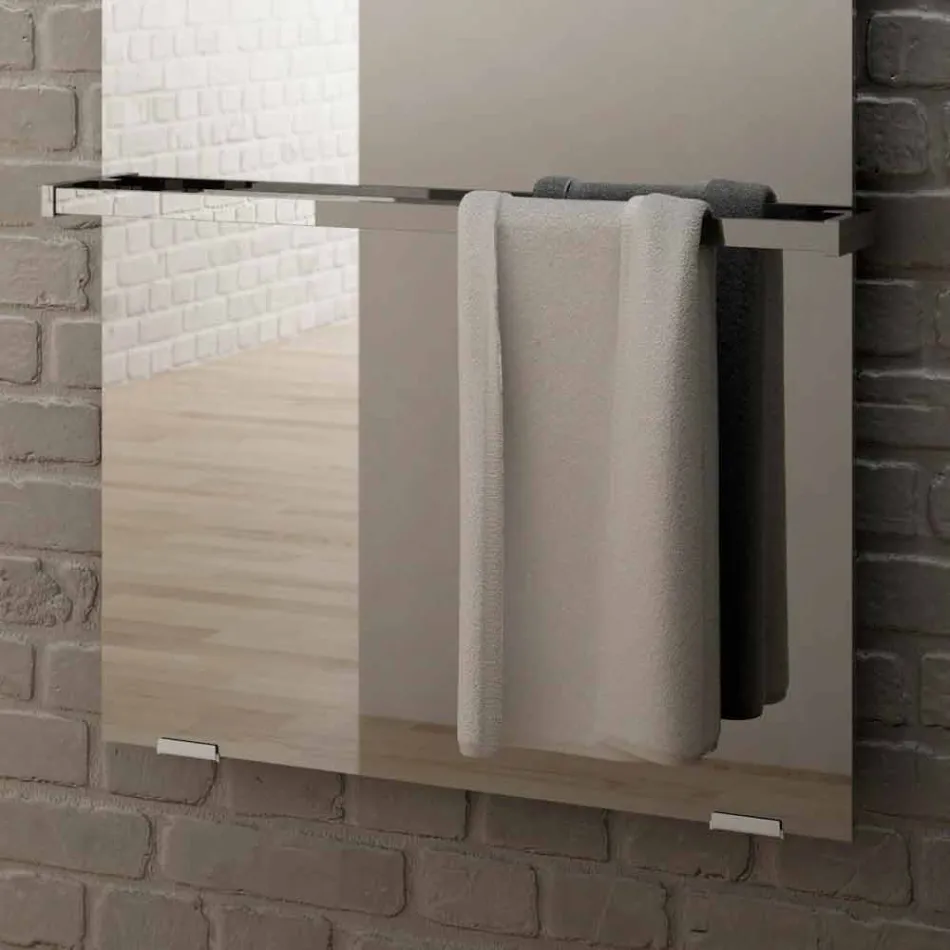

You can complete it with the chromed towel bar, or with the wireless thermostat.

Made in Italy.

Voltage 230V 50Hz
Surface temperature 70°C (approx.)
Standard electric cable 1,5 mt with Italian bipolar plug R1
International protection marking (IP code) 44 - on request it is also available with IP 55
Class of electrical insulation Class 2
Rectangular shape with rounded corners
4 mm hardened inner glass
EVA plastic (on request PVB)
4 mm hardened outer glass
Thickness 13 mm + 39 mm spacers
On / off switch
Wall spacers

AMBIENT TEMPERATURE ADJUSTMENT
To further reduce energy consumption, it is advisable to connect the panels to systems that allow the room temperature to be set and consequently activate and deactivate the power supply. For this purpose it is possible to use thermostats, programmable thermostats or home automation management systems.

Clear radiator can be used as a main heating system or as an integrating element. It increases the comfort of new buildings or renovated buildings and is also the optimal solution for places that are not constantly occupied and need to be heated quickly, for instance:
- in the residential facilities: any type of dwelling, verandas, bathrooms
- in non-residential facilities: medical offices, physiotherapy offices, hospital premises, waiting rooms, schools, restaurants, bathrooms
- in combination with a photovoltaic system that allows to reach the goal of consumption and zero emissions.

Advantages:
- it can be easily integrated into any environment
- modern design
- silent
- easy to install
- reduced size
- easy to clean
- requires no maintenance
- does not require bureaucratic permits
- sweet and pleasant heat
- eliminates / reduces molds
- better air quality and life
- rapid and efficient heating system
- 100% thermal yield

Safety
- interruption of electricity in the event of breakdown
- no risk of injury thanks to the use of laminated glass
- no risk of burns in case of contact

Warranty
The radiant panels are covered by a 2-year warranty.

Installation
The Clear radiator can be installed directly by the customer without any specific equipment, following the assembly instructions provided and in compliance with current regulations. The minimum distance from a water point is 60 cm.

ITALIAN MANUFACTURER
All the products belonging to this collection are rigorously made in Italy. The glass products undergo a thermal tempering process in compliance with the UNI EN 12150 standard, which makes them 5 times more resistant than classic glasses. In case of breakage, the tempered glass is fragmented into small pieces which limits the risk of injury and cuts.
The company's mission is guided by the awareness of the superior quality of its technology and its products, with the aim of developing and producing heated glass and infrared glass radiant panels for harmonious and stylish environments. The goal is to revolutionize the concept of heating: glass, an already precious material, now becomes a heating element and therefore an active part of a building.

Their products are the answer to every need of thermal comfort and energy saving. Carefully crafted, the company wants to offer a high quality product, extremely valid and competitive, in total respect for the environment and its sustainability.

• Infrared design electric radiator in black clear glass (0 Bytes)
• Assembly instructions (12,36 MB)
