Modern electric mirrror radiator Star, made of glass, made in Italy.
HOW TO CHOOSE YOUR MODERN DESIGN RADIATOR ACCORDING TO THE DIMENSIONS OF YOUR ROOM.
DIMENSIONS |
WEIGHT |
POWER |
HEATING SURFACE* |
500x1000 mm |
500W |
15 Kg |
9,5 square meters |
600x1200 mm |
700W |
21,6 Kg |
13 square meters |
600 x1500 mm |
900W |
27 Kg |
16,5 square meters |
* The data provided are purely theoretical and vary according to the construction and environmental characteristics of the building. For information, contact your electrician.
Star is a decorative radiator that is part of a collection of
glass radiant panels with electrical power and infrared radiation. It guarantees a perfect combination of efficiency and elegance, with a high aesthetic impact. Star is a
modern radiator made entirely of
mirrored glass. Star is composed of two sheets of glass embebbed together, one of the two features a surface that can be electrically stimulated. Applying electrical voltage, the surface deposit of the glass transforms the energy into heat that is emitted in the form of long-wave infrared rays.
The product is supplied with wall fixing brackets but it is also available with
floor fixing.
Star radiator is available in three different sizes.

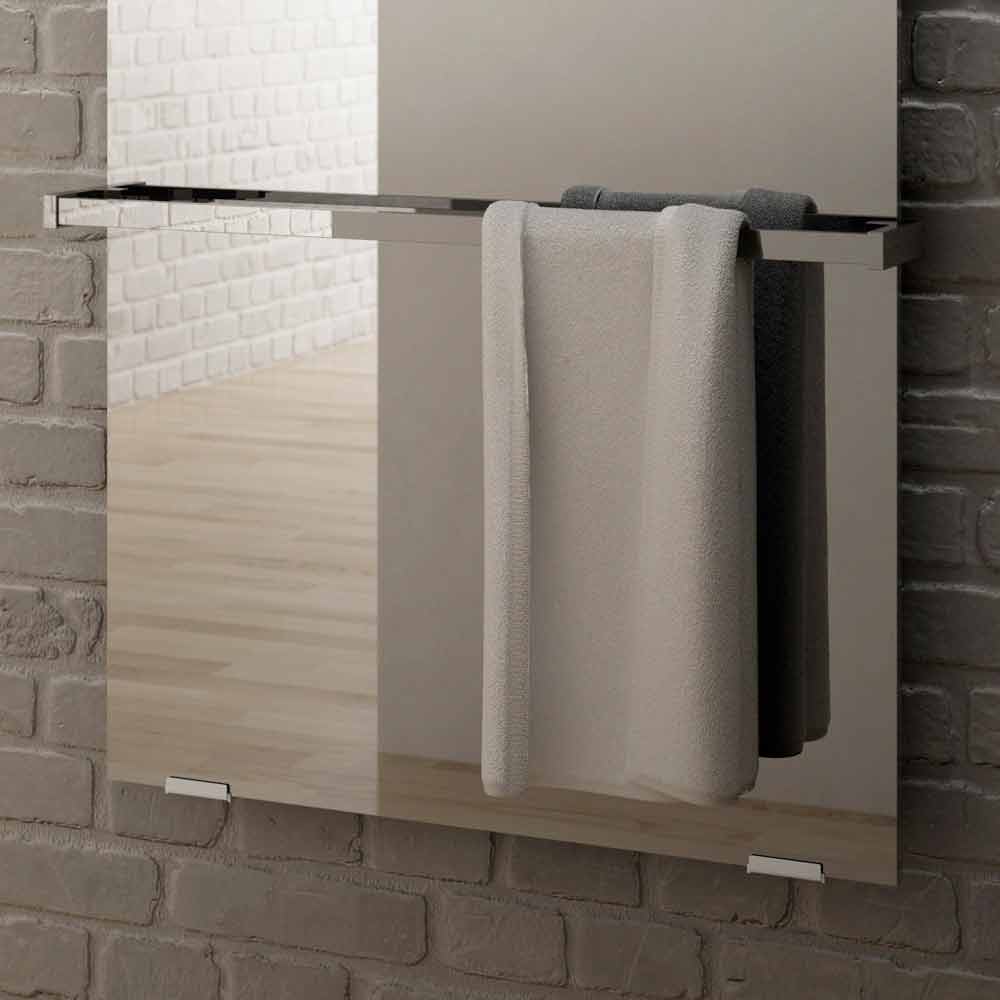

You can complete it with the
chromed towel bar, or with the
wireless thermostat.
Being a product entirely
made in Italy, you can customize every aspect of the radiator, also choosing between solid colours, digital printing, transparent or mirror finishes.
For further information, contact us at: info@viadurini.co.uk.
Surface temperature 70 ° C (approx.)
Standard electric cable 1,5 mt with Italian bipolar plug R1
International protection marking (IP code) 44 - on request it is also available with IP 55
Class of electrical insulation Class 2
6 mm hardened
inner glass
EVA
plastic (on request PVB)
6 mm hardened
outer glass
Thickness 13 mm
On / off switch
Wall spacers
AMBIENT TEMPERATURE ADJUSTMENT
To further reduce energy consumption, it is advisable to connect the panels to systems that allow the room temperature to be set and consequently activate and deactivate the power supply. For this purpose it is possible to use thermostats, programmable thermostats or home automation management systems.
Star radiator can be used as a main heating system or as an integrating element. It increases the comfort of new buildings or renovated buildings and is also the optimal solution for places that are not constantly occupied and need to be heated quickly, for instance:
- in the residential facilities: any type of dwelling, verandas, bathrooms
- in non-residential facilities: medical offices, physiotherapy offices, hospital premises, waiting rooms, schools, restaurants, bathrooms
- in combination with a photovoltaic system that allows to reach the goal of consumption and zero emissions.
Advantages:
- it can be easily integrated into any environment
- modern design
- many colours available
- possibility of customisation
- silent
- easy to install
- reduced size
- easy to clean
- requires no maintenance
- does not require bureaucratic permits
- sweet and pleasant heat
- eliminates / reduces molds
- better air quality and life
- rapid and efficient heating system
- 100% thermal yield
- radiant heat: about 70% for irradiation and about 30% for convection
Safety
- interruption of electricity in the event of breakdown
- no risk of injury thanks to the use of laminated glass
- no risk of burns in case of contact
Warranty
The radiant panels are covered by a 2-year warranty.
Installation
The Star radiator can be installed directly by the customer without any specific equipment, following the assembly instructions provided and in compliance with current regulations. The minimum distance from a water point is 60 cm.
ITALIAN MANUFACTURER
All the products belonging to this collection are rigorously
made in Italy. The glass products undergo a thermal tempering process in compliance with the UNI EN 12150 standard, which makes them 5 times more resistant than classic glasses. In case of breakage, the tempered glass is fragmented into small pieces which limits the risk of injury and cuts.
The company's mission is guided by the awareness of the superior quality of its technology and its products, with the aim of developing and producing heated glass and infrared glass radiant panels for harmonious and stylish environments. The goal is to revolutionize the concept of heating: glass, an already precious material, now becomes a heating element and therefore an active part of a building.
Their products are the answer to every need of thermal comfort and energy saving. Carefully crafted, the company wants to offer a high quality product, extremely valid and competitive, in total respect for the environment and its sustainability.
