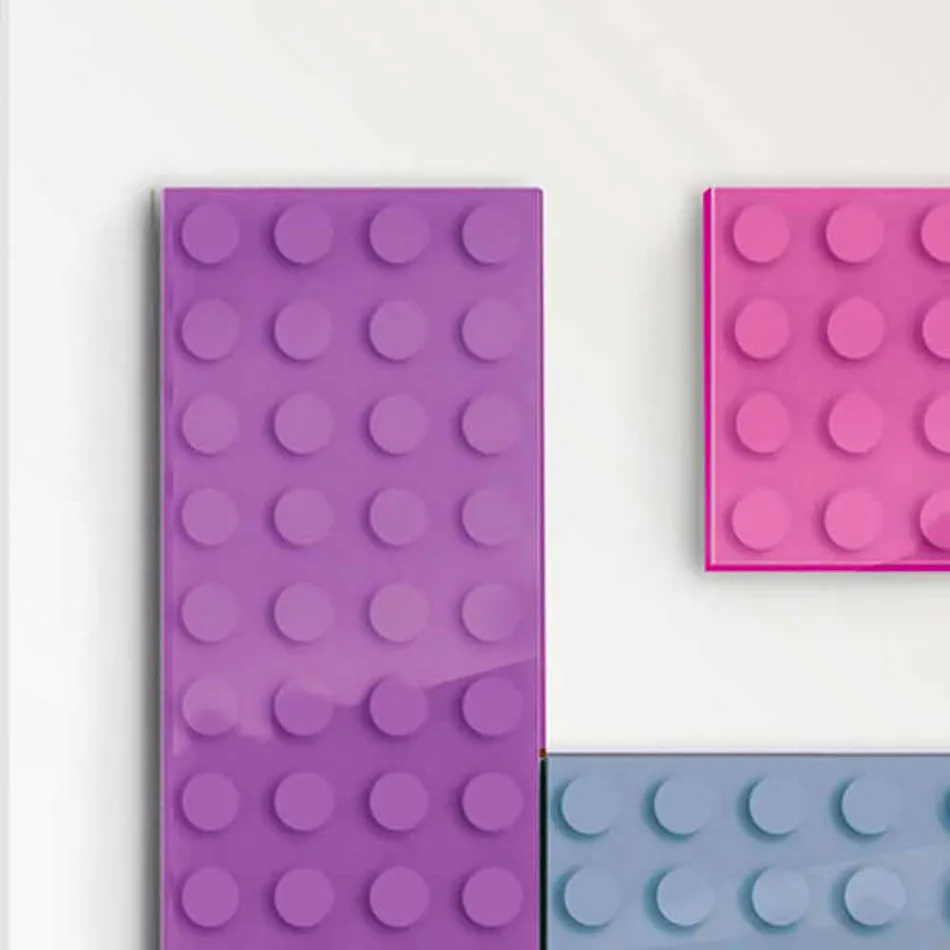

Modern lego brick hot water radiator Brick by Scirocco H

Brick designer hydraulic lego radiator made in Italy by Scirocco H

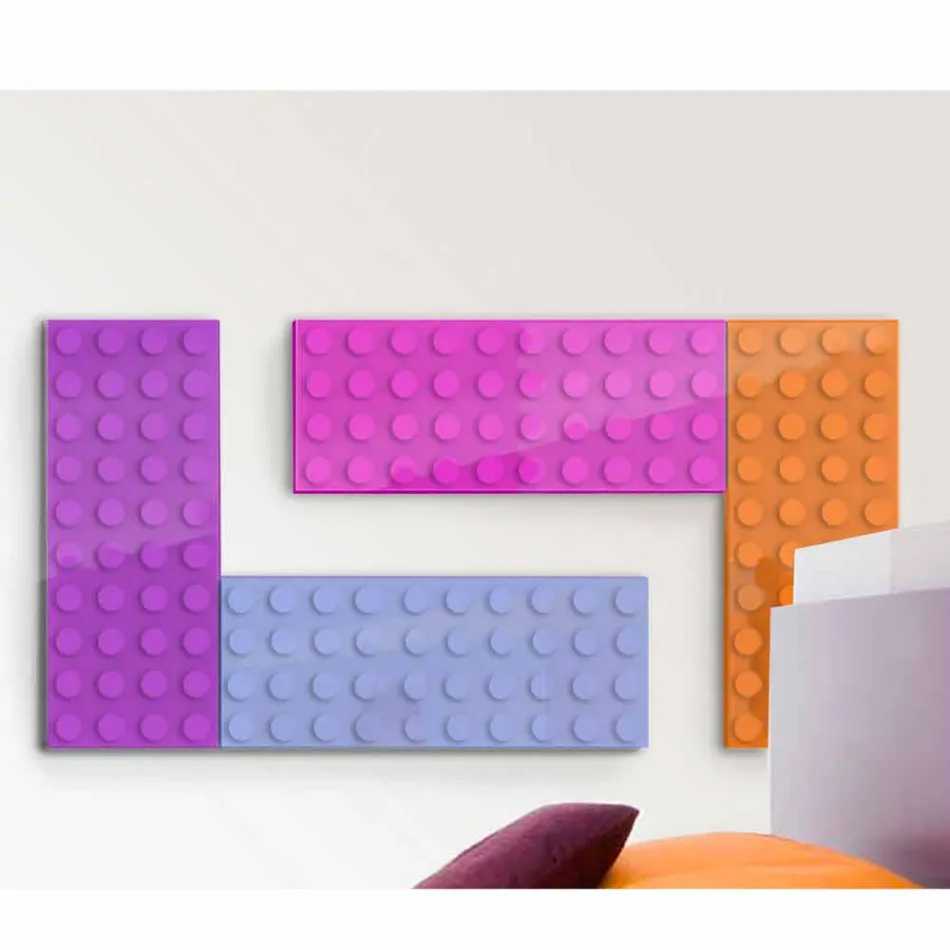

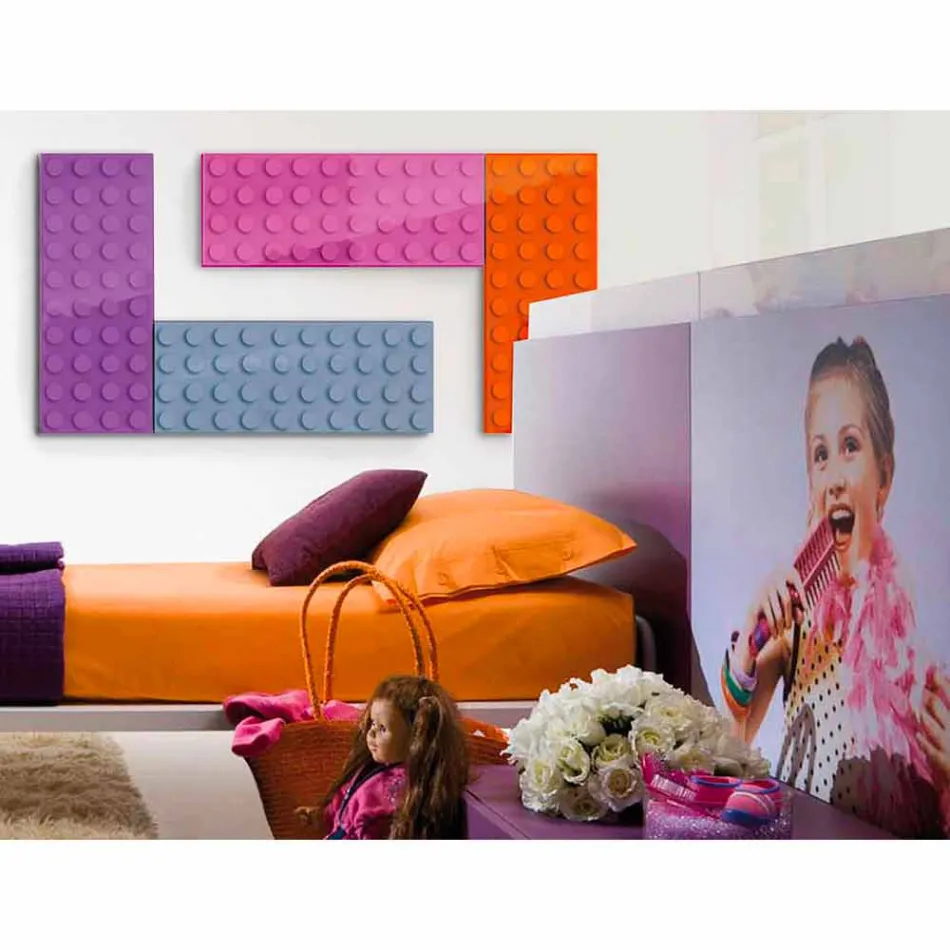

Composition of colored radiators with a modern and fun style, in the hydraulic version. A project inspired by an affective icon shared by all. Multiple color combinations for horizontal and vertical modular elements. As in a construction game, the elements combine, placing themselves side by side depending on the available space and the necessary thermal output.

Material:
- Heating core made up of an aluminum fin coil and copper return pipes
- Preformed sheet steel cover

Single product includes:
- Heating battery
- Cover
- Valve and lockshield valve cannot be thermostaticized
- Breather valve
- Wall mounting
- In the composite version, a connection kit between modules is supplied

Technical features :
- Valve, lockshield holder and hydraulic connections inside the radiator, hidden by the cover
- Maximum operating pressure: 5 bar
- Not available for single-pipe systems

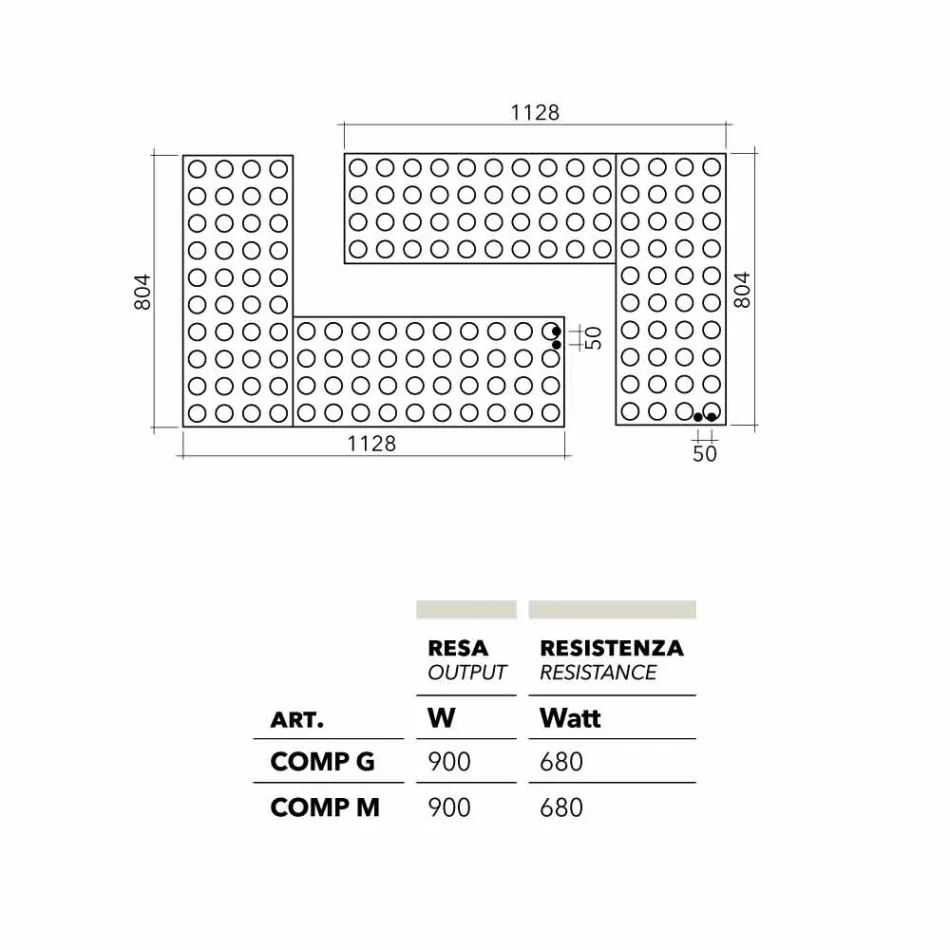

- Each item is supplied with a template for valve center distance and wall fixing position
- Minimum pipe distance outside the wall: 20 mm for copper, 23 mm for multilayer
- Heat is transmitted via convection, the cover is not radiant

Please note: To receive the transparent hanger, request a quote from: cliente@viadurini.it

Radiator available in different color variations: view the color chart and indicate the desired color code in the appropriate box.
NB: indicate the type of tube (copper or multilayer) and diameter when ordering. In the absence of provisions, the 12mm copper pipe fitting will be supplied.
